This guide walks you through installing RoomVision XL and preparing it for use in boardrooms, training rooms, and large meeting spaces.

RoomVision XL is built for larger rooms. Installation is simple, stable, and predictable, with one cable for power and control and flexible video outputs.

Before installing, confirm the basics:

• A PoE+ network connection is available at the camera location

• The mounting position is chosen (above display, below display, or side wall)

• The video output is selected (HDMI, SDI, or USB)

A little planning makes setup quick and clean.

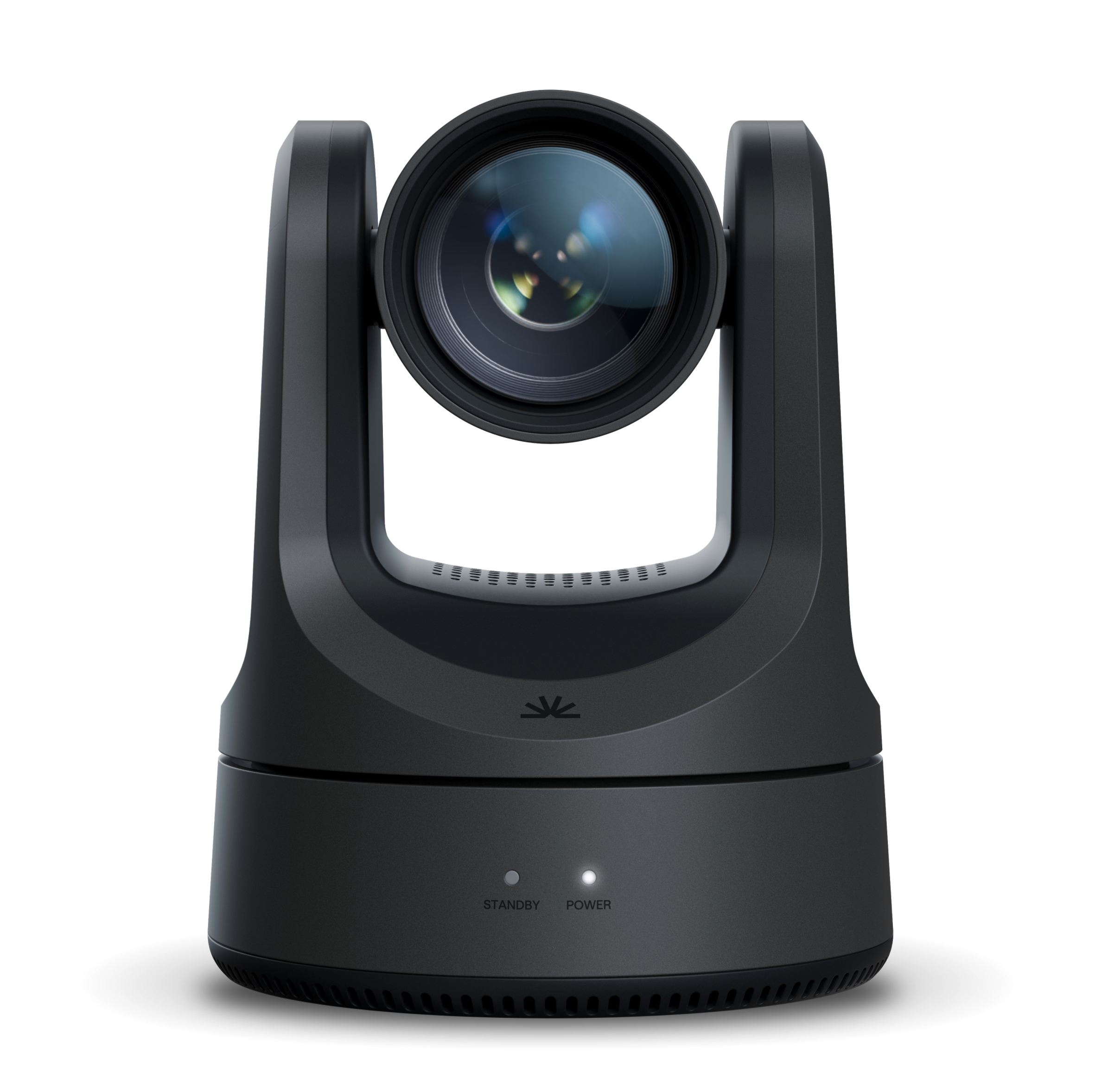

Mount RoomVision XL where the full seating area can be framed clearly and faces look natural.

Recommended positions:

• Centered above the display (most common)

• Centered below the display (more eye-level)

• Side wall, if front-wall mounting isn’t possible

Make sure it is level and firmly fixed. Stable mounting is important for smooth tracking.

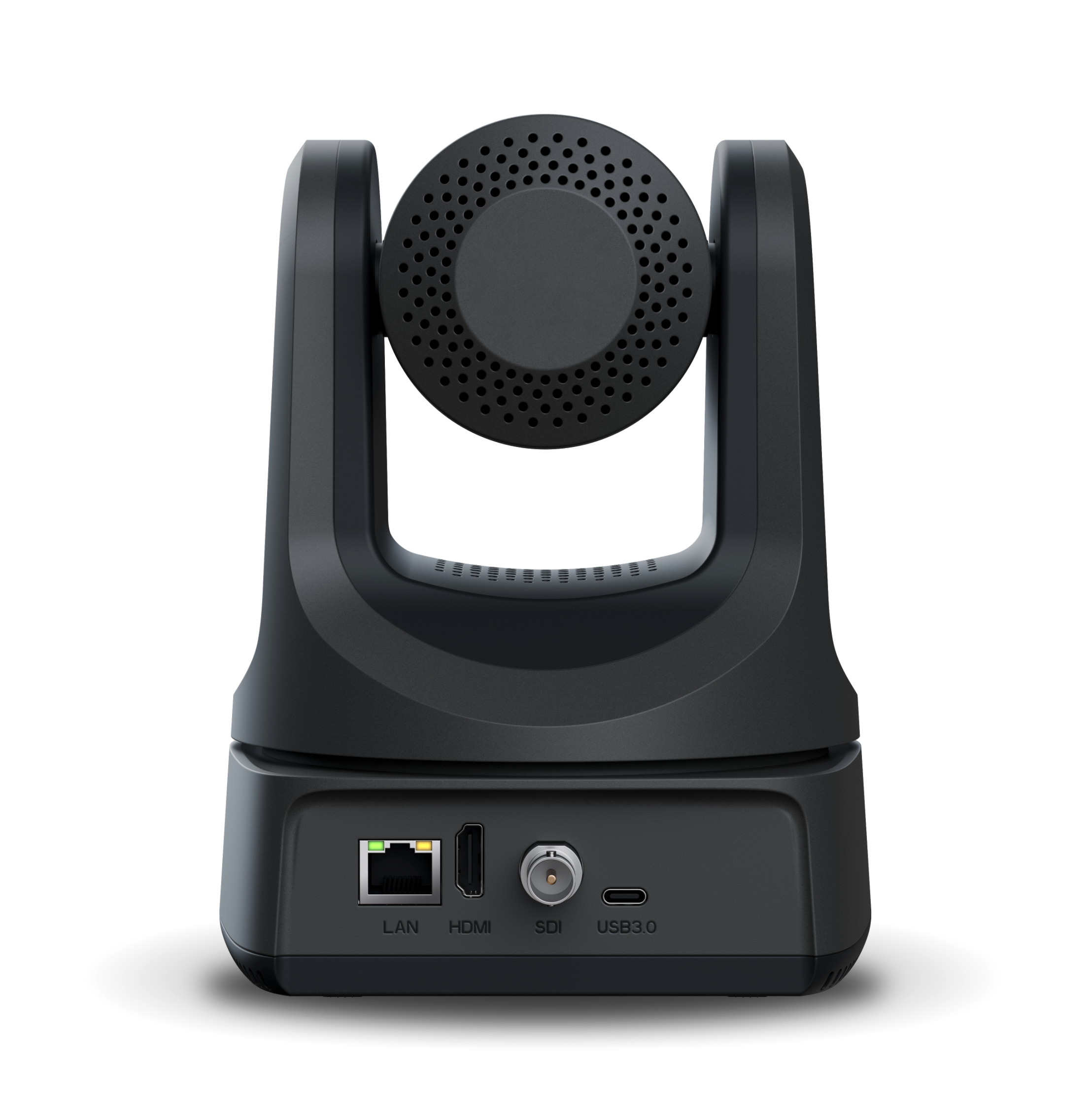

RoomVision XL uses a single cable for power and control.

Steps:

• Connect a network cable from the LAN port to a PoE+ switch

No external power supply is needed.
The camera powers on automatically.

With power handled over LAN, connect the video output that fits your room:

• HDMI 2.0 for most modern room systems

• 3G-SDI for professional AV workflows

• USB 3.0 for USB-based rooms or BYOD use

Choose the output that matches how the room is used.

RoomVision XL is now installed and ready for use.

With humanoid-based tracking, extended zoom, and a clean single-cable setup, it delivers smooth, hands-free video in large meeting spaces — without added complexity.

RoomVision XL is designed for larger rooms and simple installs.

Key takeaways:

• Stable mounting for accurate tracking

• One PoE+ cable for power and control

• Flexible video output options

• Natural, automatic camera movement

Mount it.
Connect one cable.
RoomVision XL handles the rest.
