RoomVision - Hardware Overview

Edited

Overview

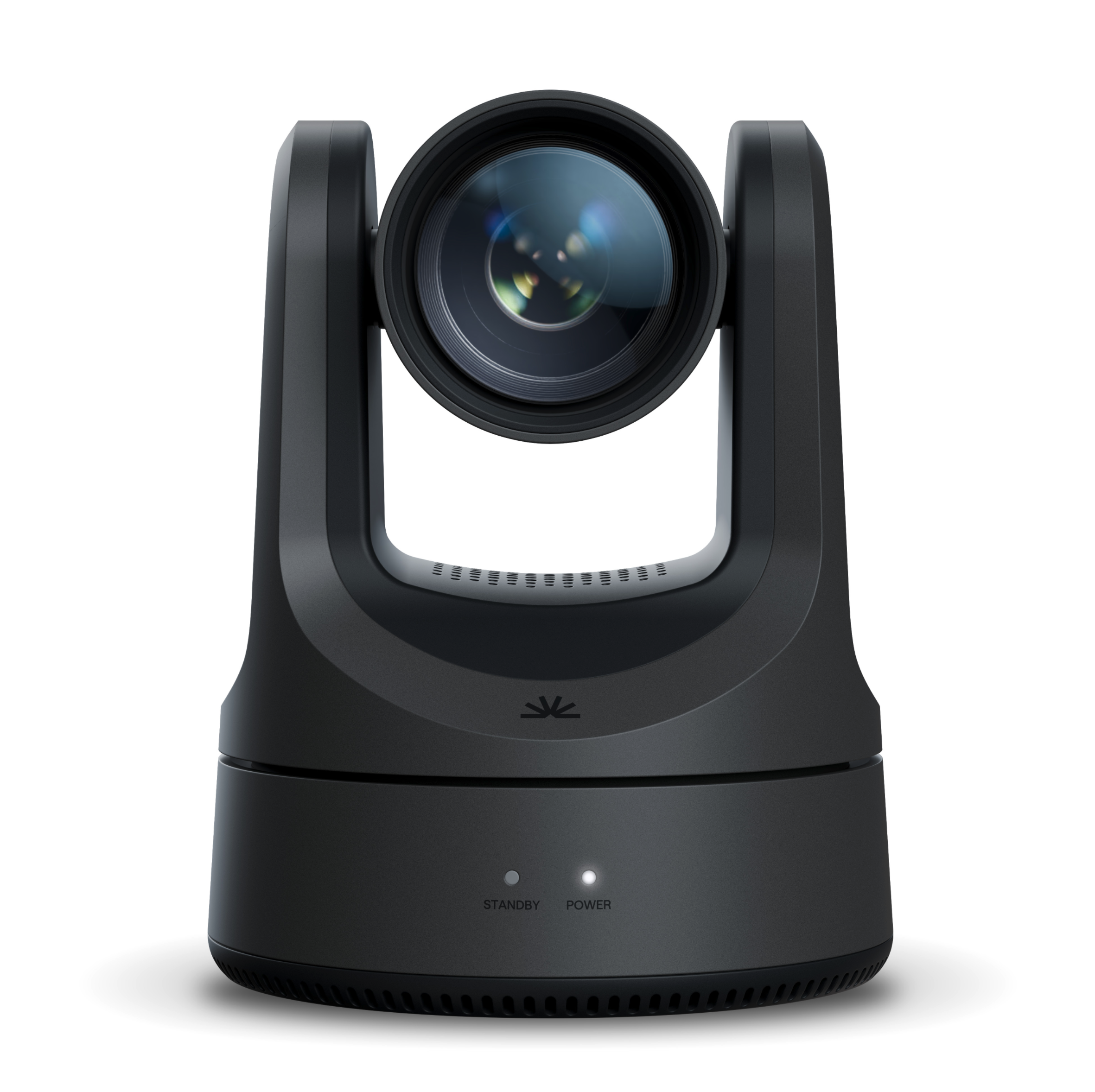

RoomVision is a PTZ camera with built-in humanoid-based tracking for natural, automatic framing.

It visually identifies the active speaker and follows their movement to keep them centered in frame. If the speaker moves out of view or is briefly blocked, RoomVision quickly finds them again and keeps tracking.

The result is hands-free camera operation that stays smooth and consistent throughout the meeting.


Video Performance

RoomVision is designed to deliver clear, natural-looking video in any meeting.

  • Up to 1080p at 60 fps, smooth, lifelike video with natural motion

  • Full HD wide-angle lens, captures the entire room without distortion

  • 12× optical zoom, frames speakers clearly without losing detail

  • Horizontal field of view: 72.5°–6.9°, wide coverage or tight focus when needed

  • Vertical field of view: 44.8°–3.9°, flexible framing for different room layouts

Together, these features allow RoomVision to show the full room or focus on the right person automatically, keeping meetings clear and engaging.


Network & Power

RoomVision XL uses a single LAN connection for power and control.

  • PoE powered, no external power supply required

  • All control traffic handled over the network

  • Clean, single-cable installation

This keeps installations simple and predictable.

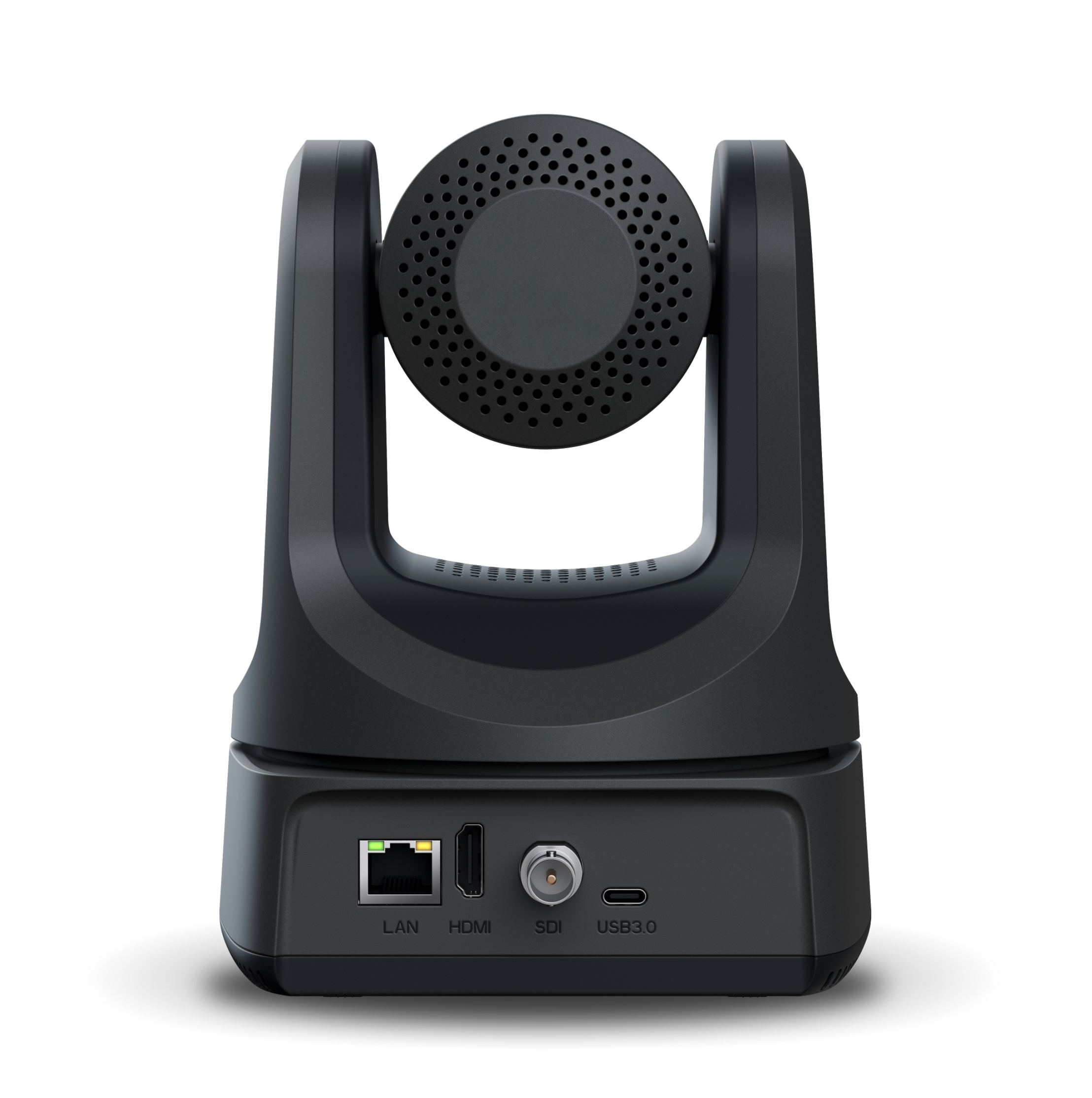

Video Output Ports

With power and control handled over the LAN port, all remaining connections are dedicated to video output.

  • HDMI (v1.3)

  • SDI

  • USB 3.0

These outputs provide flexibility for integration with a wide range of room systems and workflows.


USB Connectivity

The USB 3.0 port supports direct video output for USB-based room systems and BYOD use cases, making RoomVision suitable for both dedicated room setups and flexible meeting environments.


In Summary

RoomVision combines intelligent tracking with simple installation.

  • Humanoid-based automatic camera tracking

  • Smooth, natural framing without presets

  • Full HD video with optical zoom

  • PoE single-cable power and control

  • Multiple video output options

A reliable camera solution for modern meeting rooms, delivering consistent, hands-free video without added complexity.
